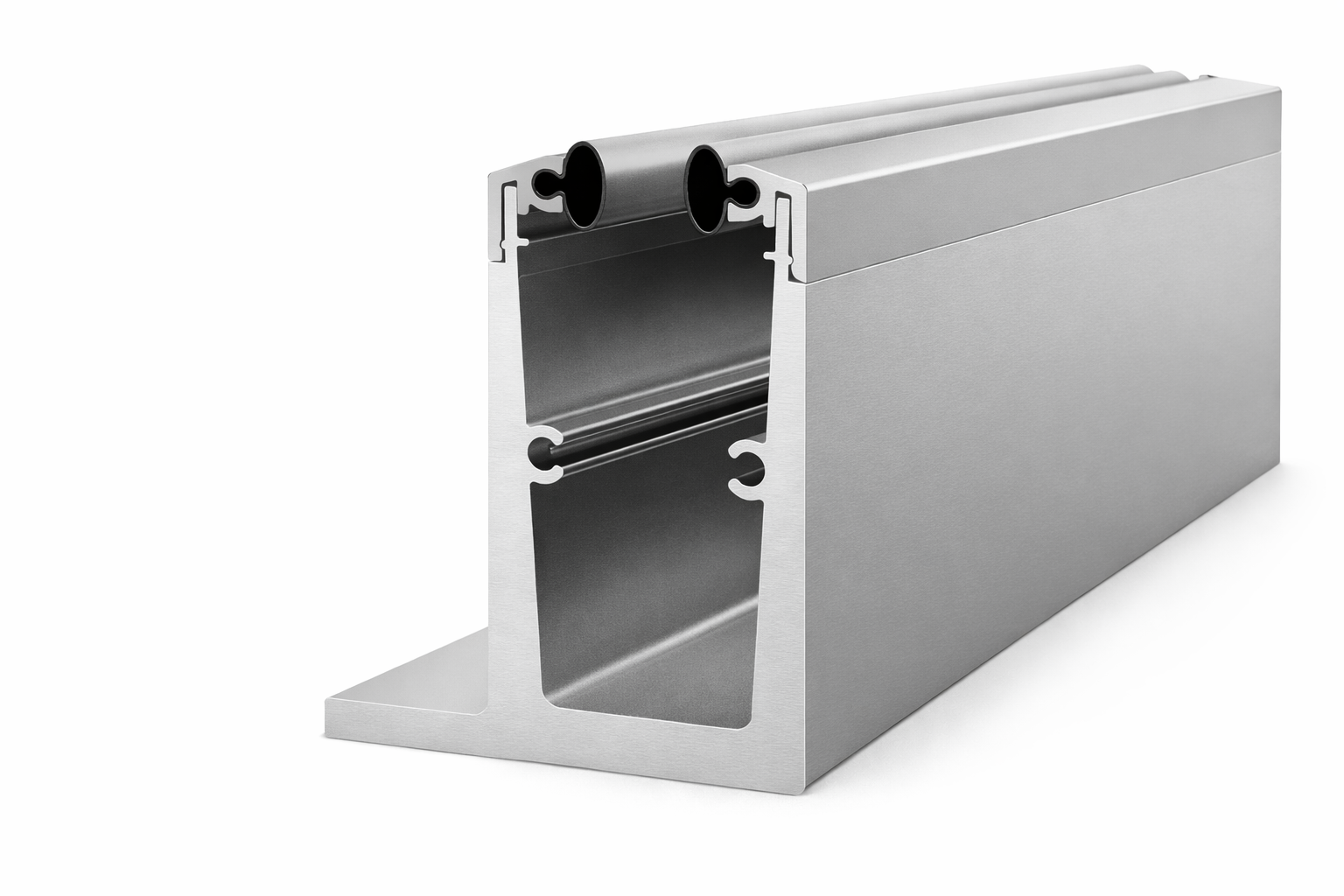

F Type Pre-Drilled Aluminium Wet Glazed Channel

Specifications

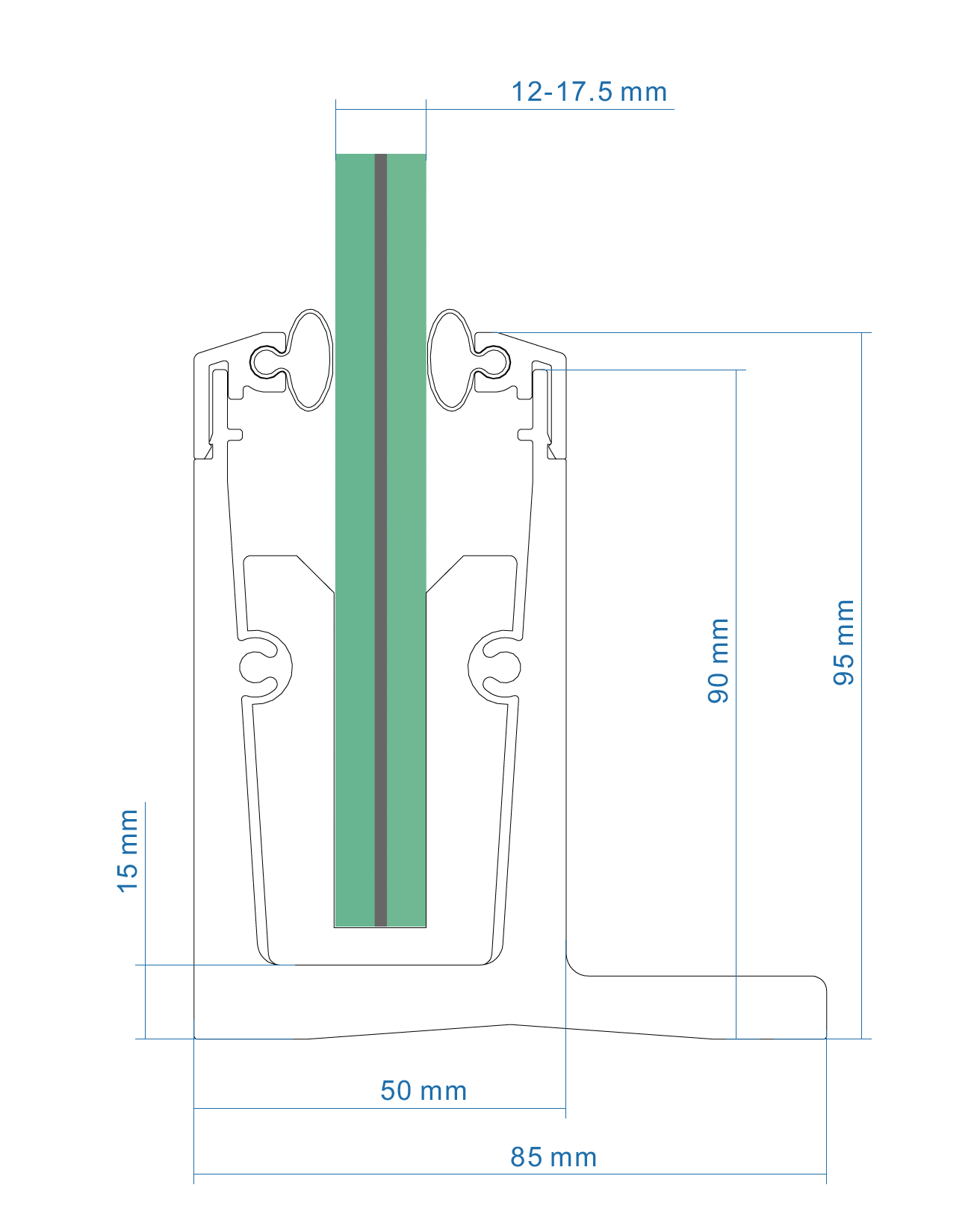

Profile Size: W85 × H95 mm
Standard Lengths: 2900 mm / 5800 mm

Finish Options:

Mill Finish

Clear Anodised

Matte Black

Custom colours available upon request

Mounting Type: Top Fixed

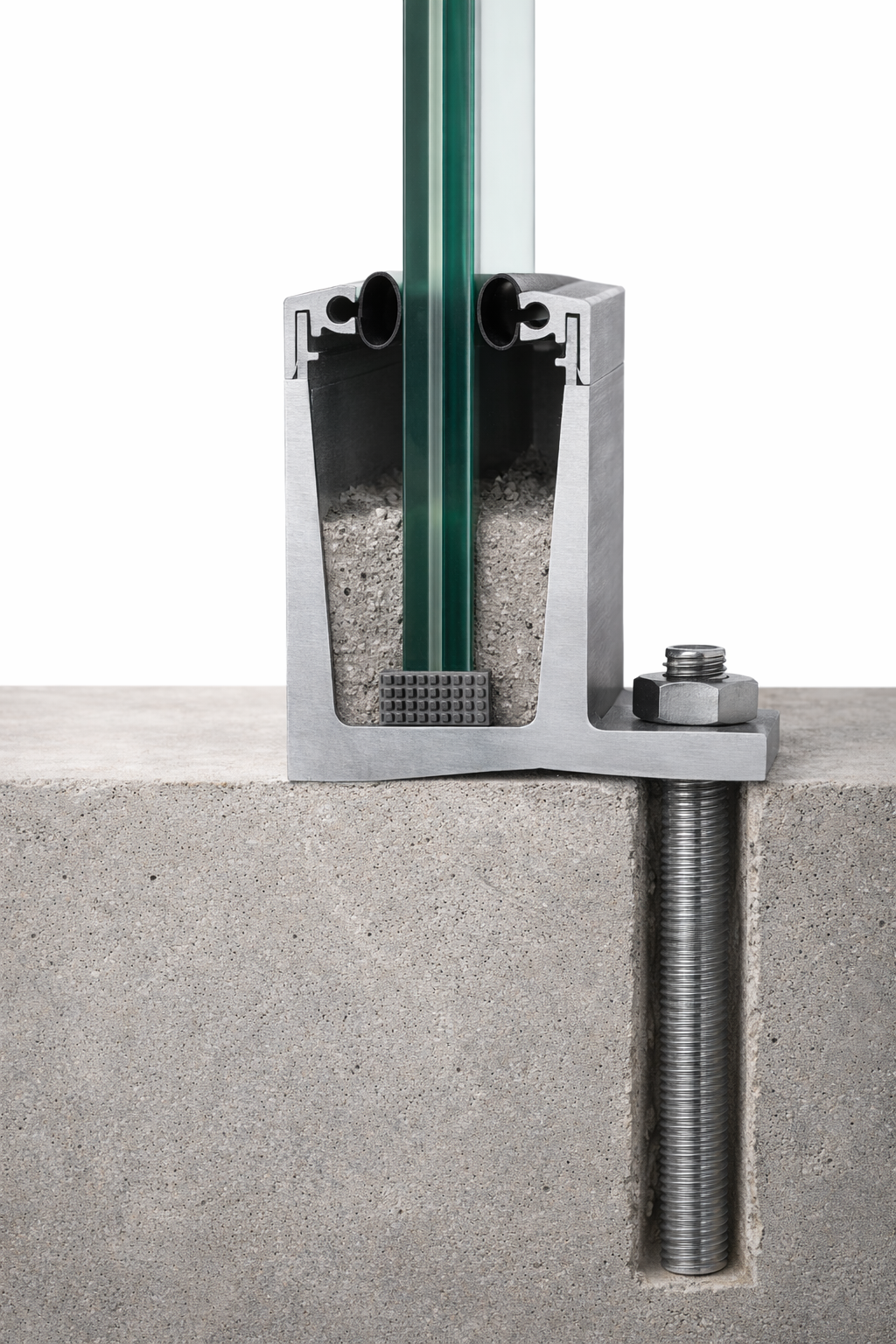

Glazing Type: Wet Glazed (grout required)
Pre-Drilled: Yes — factory pre-drilled for accurate alignment and efficient installation
Material: Aluminium Alloy 6063

Key Features

Structural-grade extrusion engineered for heavy glass loads

Factory pre-drilled holes for consistent fixing centres

Clean dry-glaze installation — no cement infill or wet grout

Suitable for commercial and residential applications

Designed for precision alignment and long-term durability

Compliance

Fully engineered and tested to comply with relevant Australian Standards (system dependent):

AS/NZS 1170.1 — Structural design actions (barrier loading requirements)

AS/NZS 2208 — Safety glazing materials

AS 1926.1 — Swimming pool safety barriers

Compliance applies when installed as a complete system including specified glass, fixings, anchors, and substrate conditions in accordance with engineering documentation and installation guidelines.

Applications

Frameless glass balustrades

Barrier fencing with glass infills

Pool fencing (subject to regulatory approval)

Internal glass partitions

Compatibility

Compatible with glass thickness typically 12 mm – 17.56 mm (subject to system configuration)

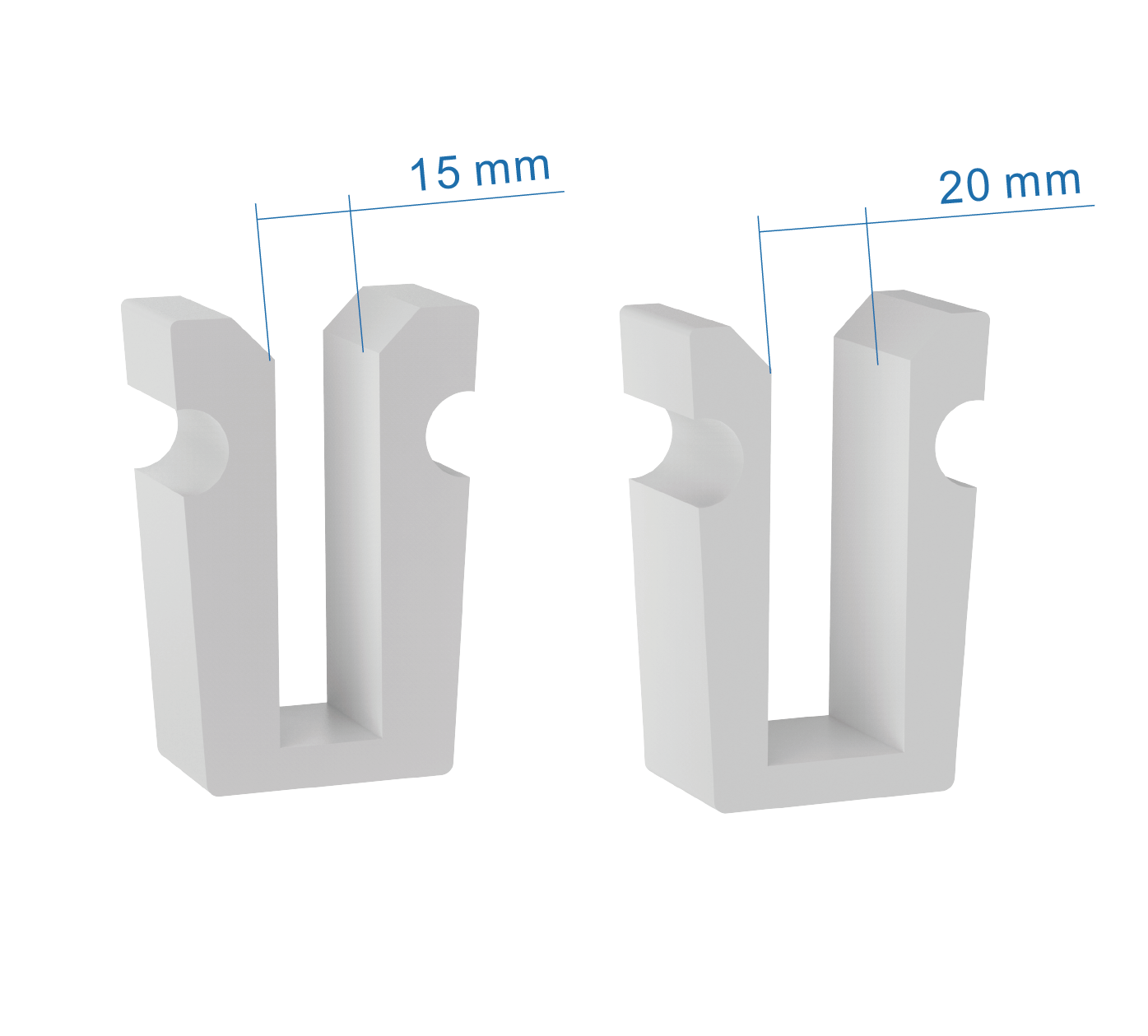

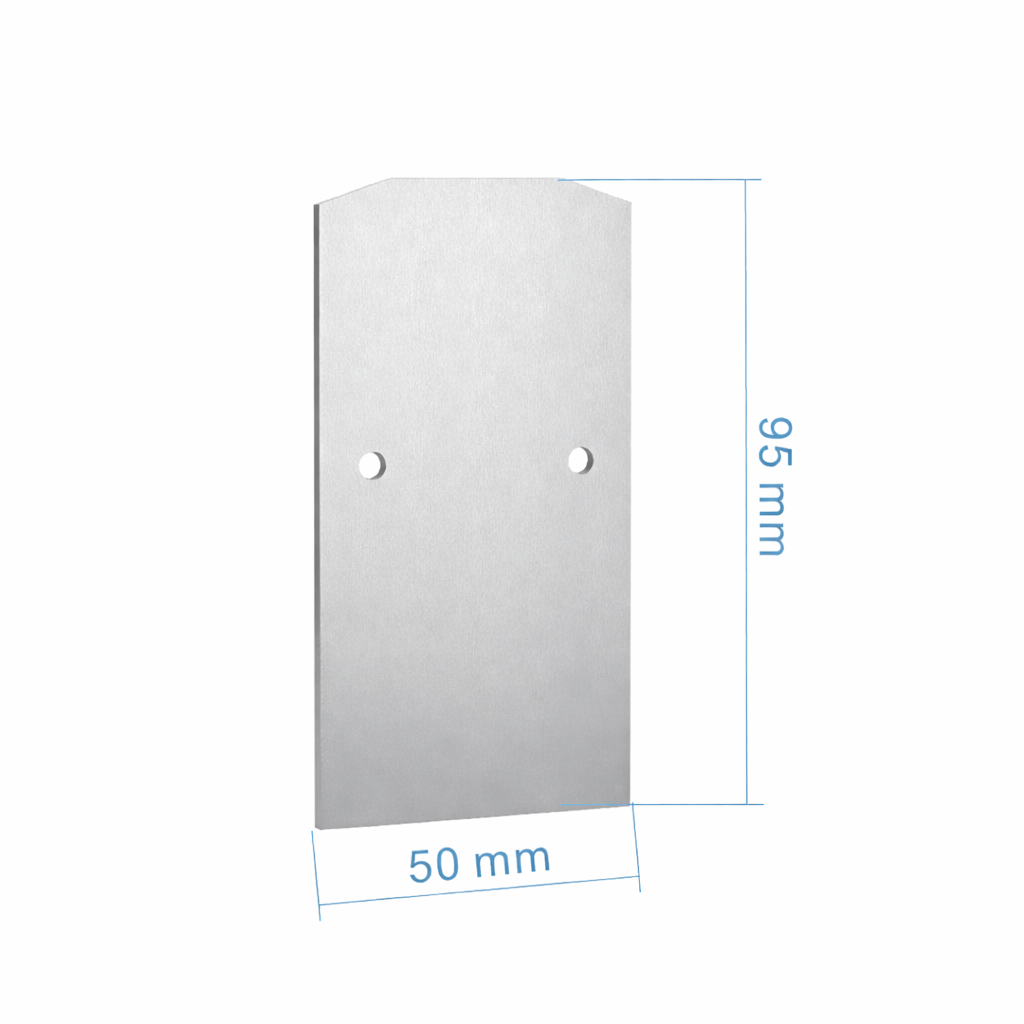

Requires approved gaskets, wedges, and cover plates

Suitable for fixing into concrete, steel, or timber substrates using certified anchors

A formatted technical datasheet (PDF-ready layout), installation guide, or CAD profile drawing can be prepared upon request.
