C1170 Series

12mm Clear Toughened Glass Pool Fence Transition Panel

Engineered for Step-Down, Corner & Uneven Ground Applications

The C1170 Series is a precision-engineered glass transition panel designed specifically for pool fence installations where ground levels change or directional corners occur.

Ideal for step-down areas, retaining walls, and uneven surfaces, this 12mm toughened safety glass panel connects seamlessly with standard 1170mm pool fence panels — ensuring continuous compliant height under Australian Pool Safety Standards AS1926.1.

Whether you're managing a complex site condition or creating a clean architectural finish, the C1170 transition panel delivers structural reliability and visual consistency.

Designed for Professional Pool Fence Installations

This panel is purpose-built for:

Pool fence corner transitions
Step-down and split-level installations
Retaining wall applications
Uneven ground pool fencing
Seamless connection to 1170mm standard glass panels

Maintains compliant barrier height while preserving a frameless, modern aesthetic.

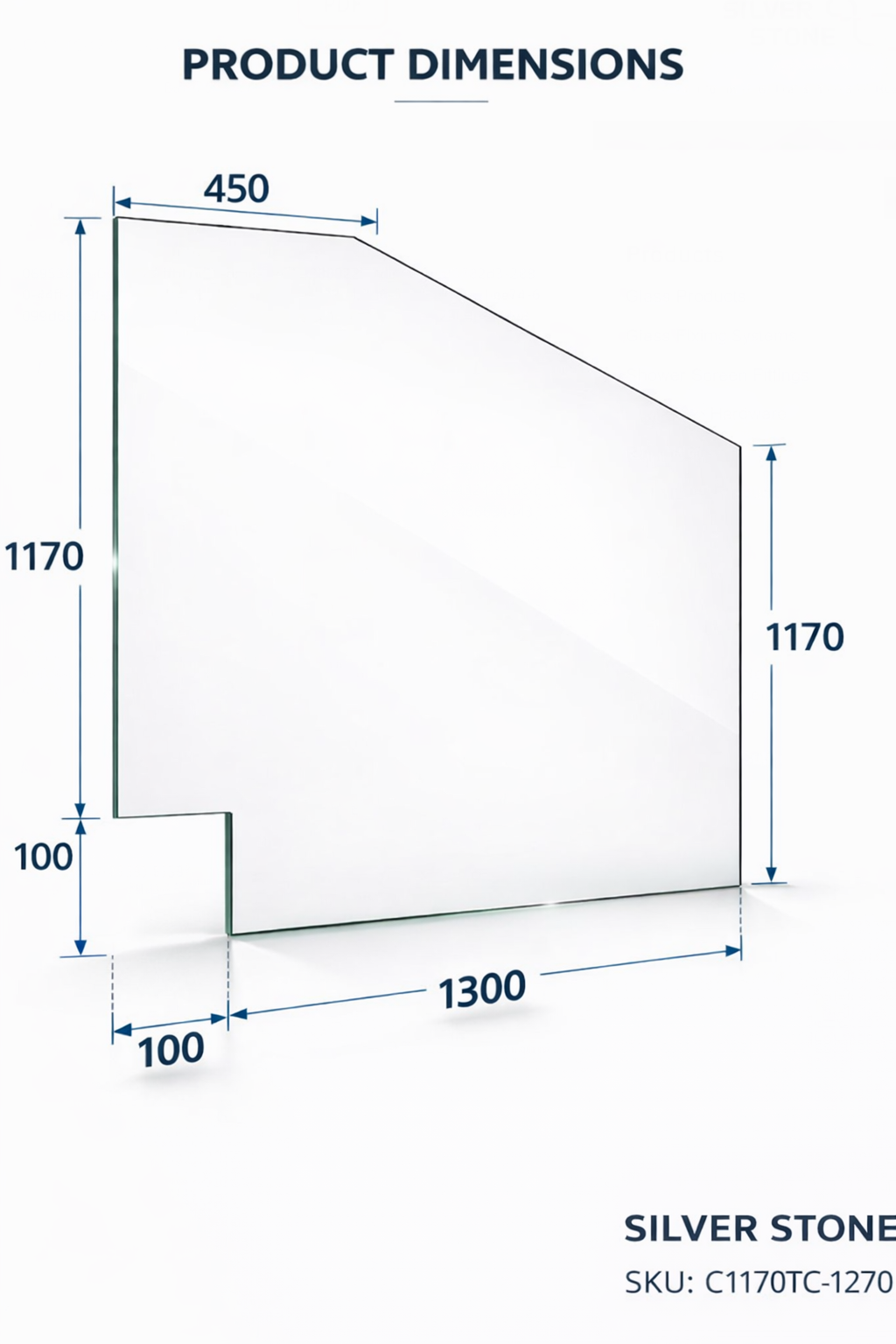

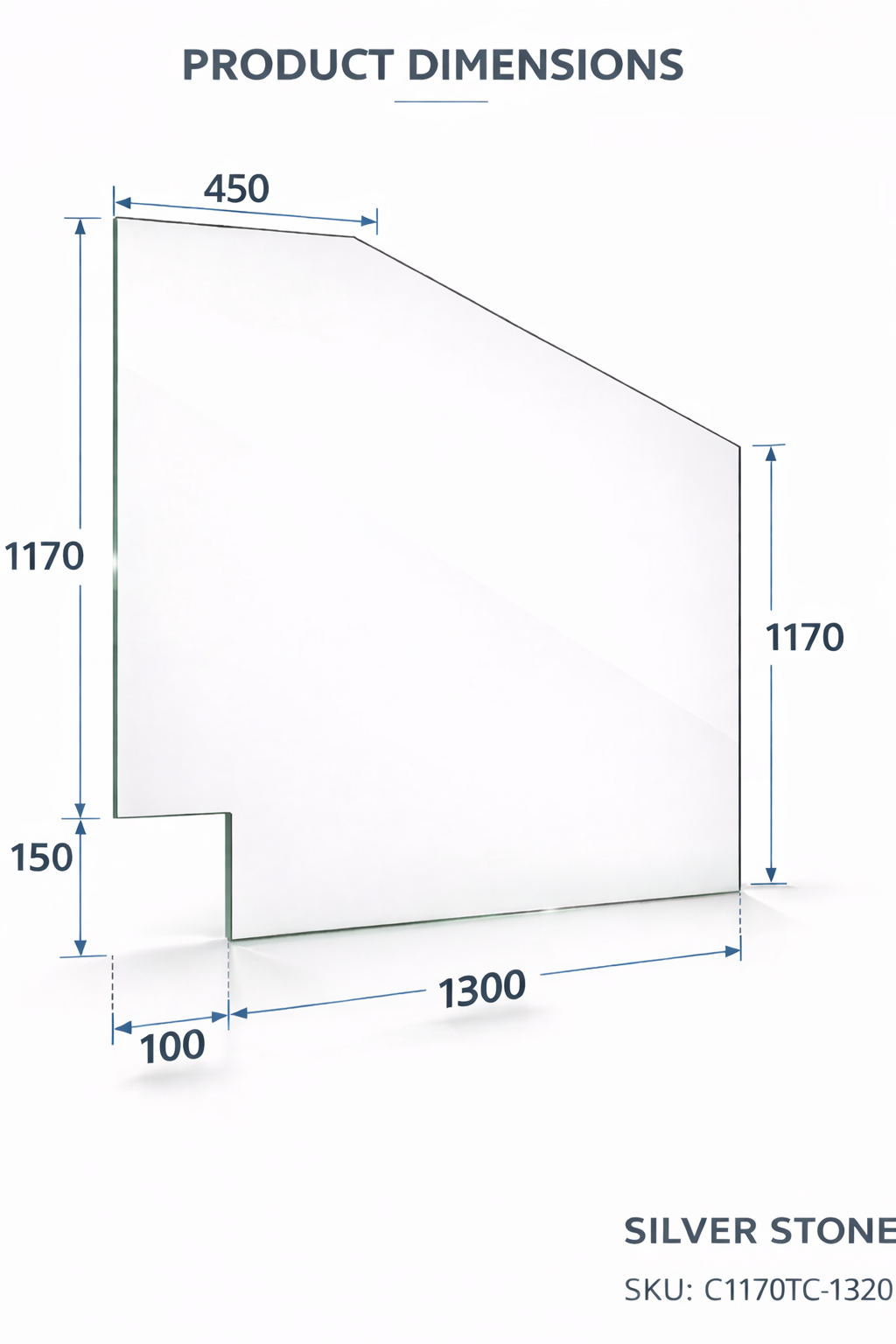

Product Specifications

Glass Type:
12mm Clear Toughened Safety Glass

Base Width:
1300mm
(Dimension refers to the bottom edge width)

Overall Height Options:
1270mm – 1770mm
Available in 50mm increments

Lower Side Height Alignment:
Engineered to align precisely with 1170mm standard pool fence panels

Corner Finish:
2mm Radius Safety Corners

CNC Precision CUT OUT Design

Each panel features a precision CNC machined cut out for step transition applications:

CUT OUT Width: Fixed at 100mm
CUT OUT Height Range: 100mm – 600mm
Available in 50mm increment size options
Smooth polished internal edges
Clean architectural finish

The CNC manufacturing process ensures installation accuracy, structural integrity, and a refined appearance.

Australian Standards Compliance

Compliant with AS1926.1 – Australian Pool Safety Standards
Manufactured to AS/NZS 2208:1996 – Grade A Safety Glass
Certified under the CSI Pas-Mark Scheme

Fully compliant pool fencing solution for residential and commercial installations across Australia.
