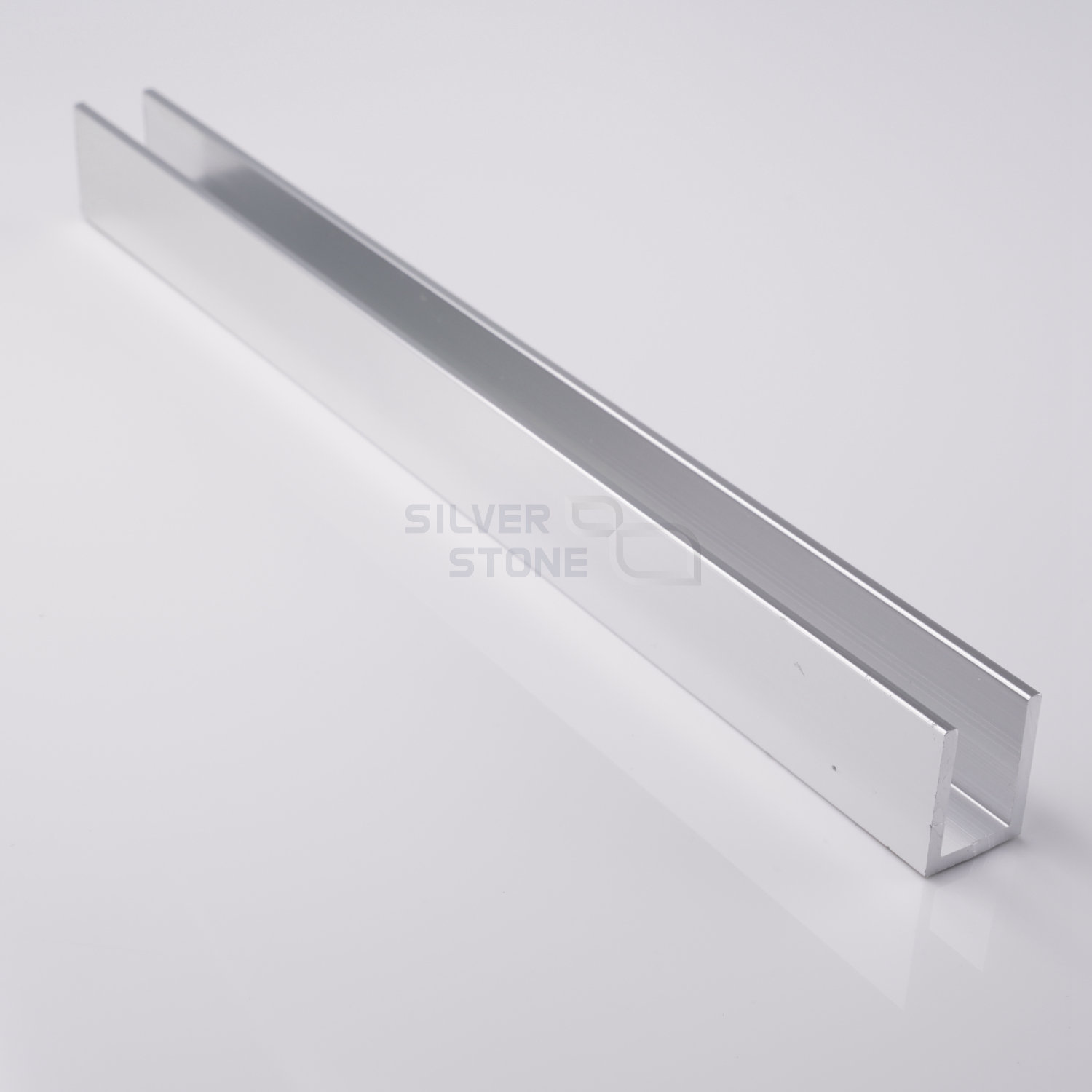

The AUC-1914 Series Aluminium U-Channel is designed for securing fixed glass panels in shower screens and other architectural glass installations. Manufactured from high-quality Aluminium 6063-T5, it offers excellent strength, durability, and corrosion resistance while maintaining a clean and minimal appearance.

Suitable for 8–10mm toughened glass, this deep pocket U-channel provides a stable and secure fixing method for glass panels installed to the wall, ceiling, or floor. The deep profile improves glass retention and ensures reliable support for fixed panels.

Glass panels are wet glazed with clear silicone, creating a strong and secure hold while maintaining a neat installation finish.

Specifications

Suitable Glass Thickness: 8–10mm

Size: H19 × W14 × L2500mm

Material: Aluminium 6063-T5

Features

Deep pocket design for enhanced glass support

Designed for monolithic toughened glass

Suitable for fixing glass to wall, ceiling, or floor

Can be used independently or with standard depth U-Channel

Wet glazed installation using clear silicone

Supplied in 2.5m standard lengths

End caps available to conceal channel ends

Clean and minimalist architectural appearance

The 19mm high profile Deep U-Channel is commonly used as the top channel in installations where the glass panel is inserted into the upper channel first and then lowered into a 10mm high regular U-Channel installed at the bottom of the enclosure.

Available Finishes

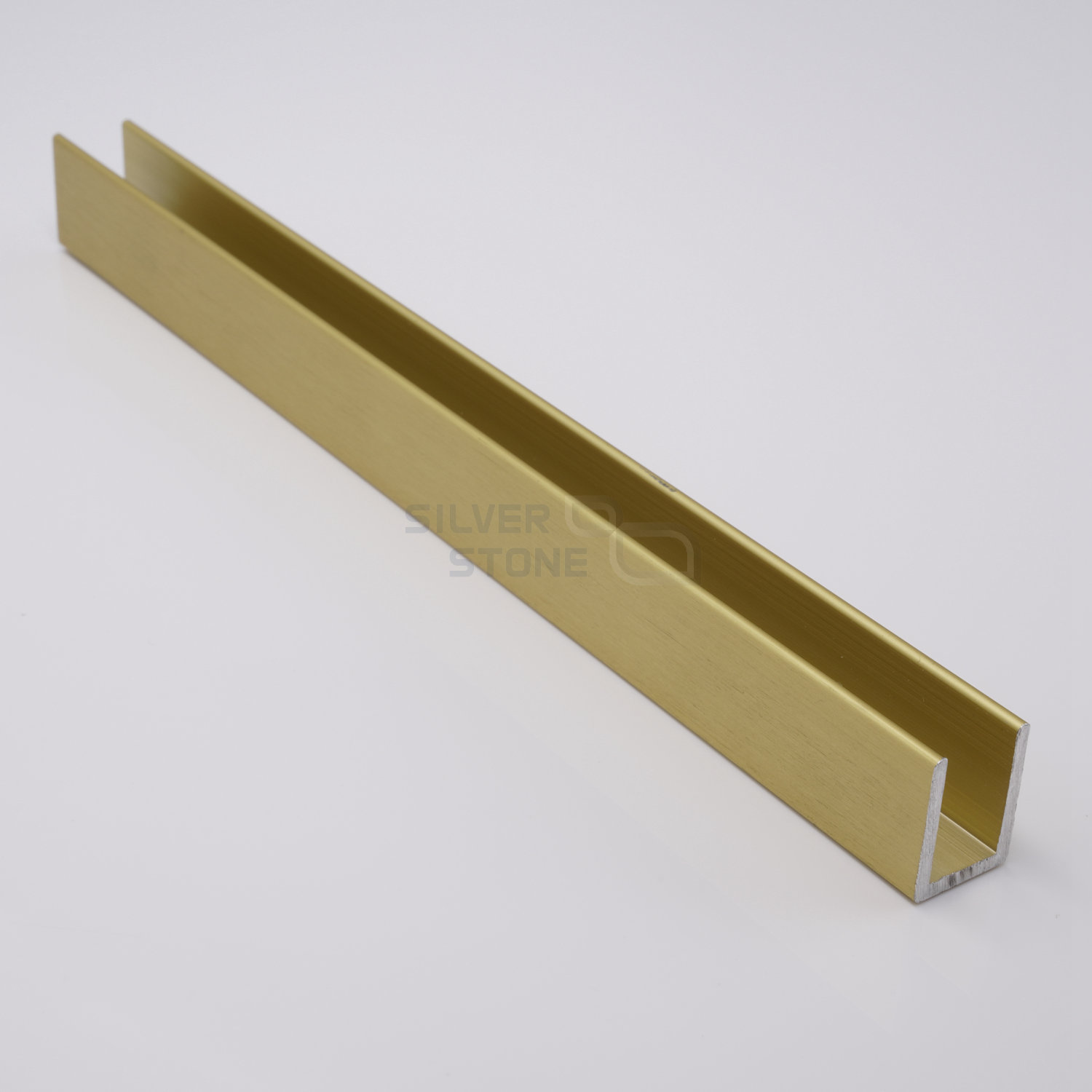

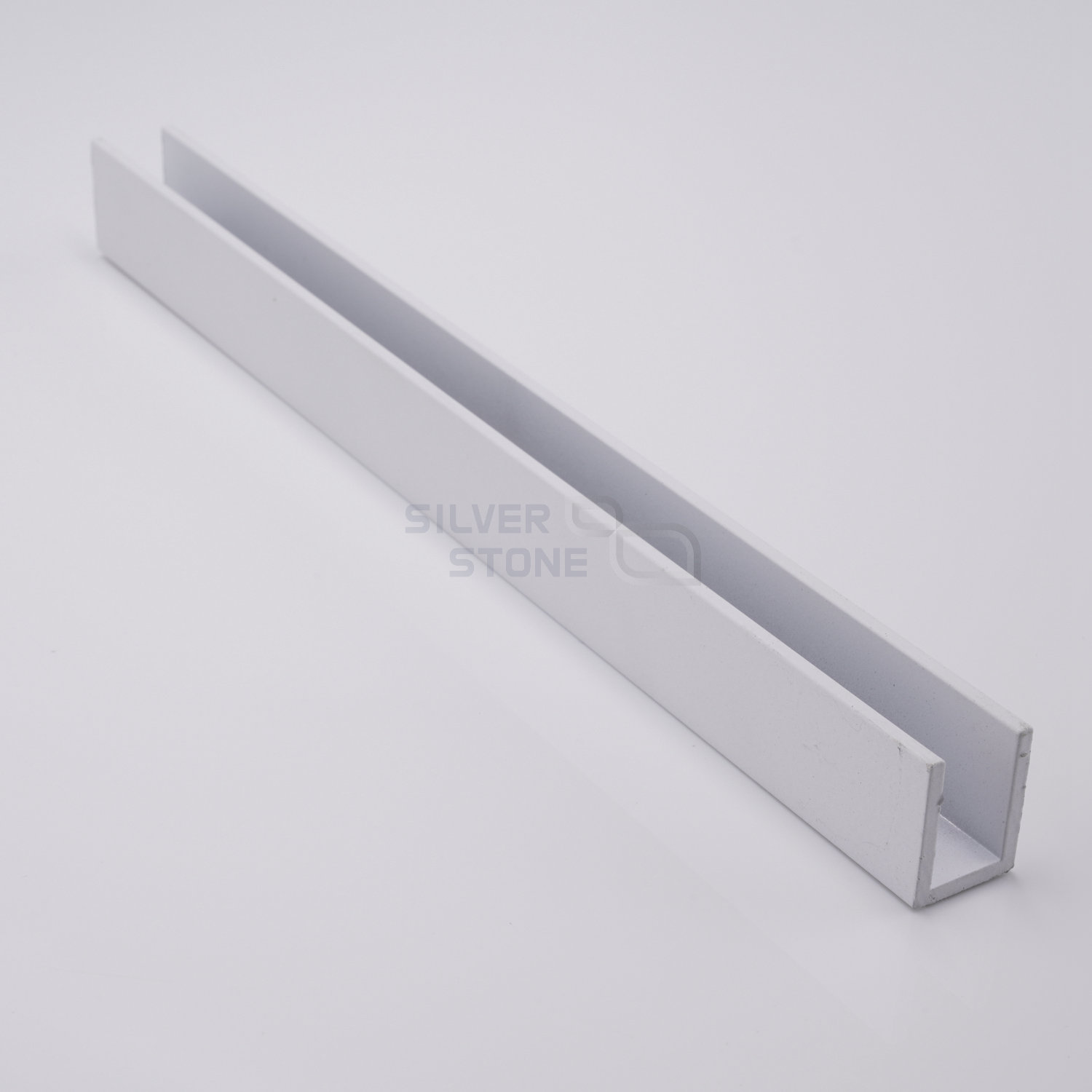

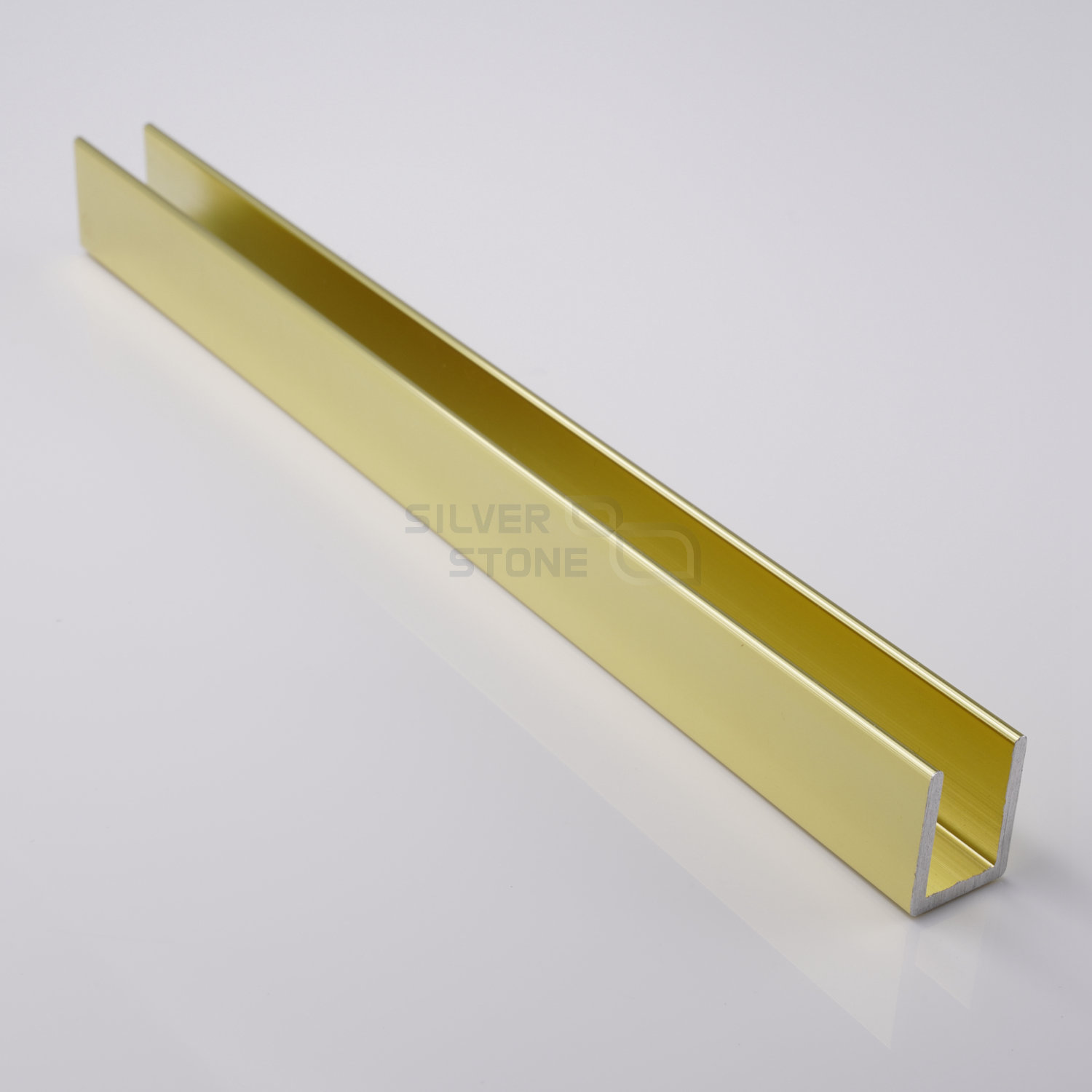

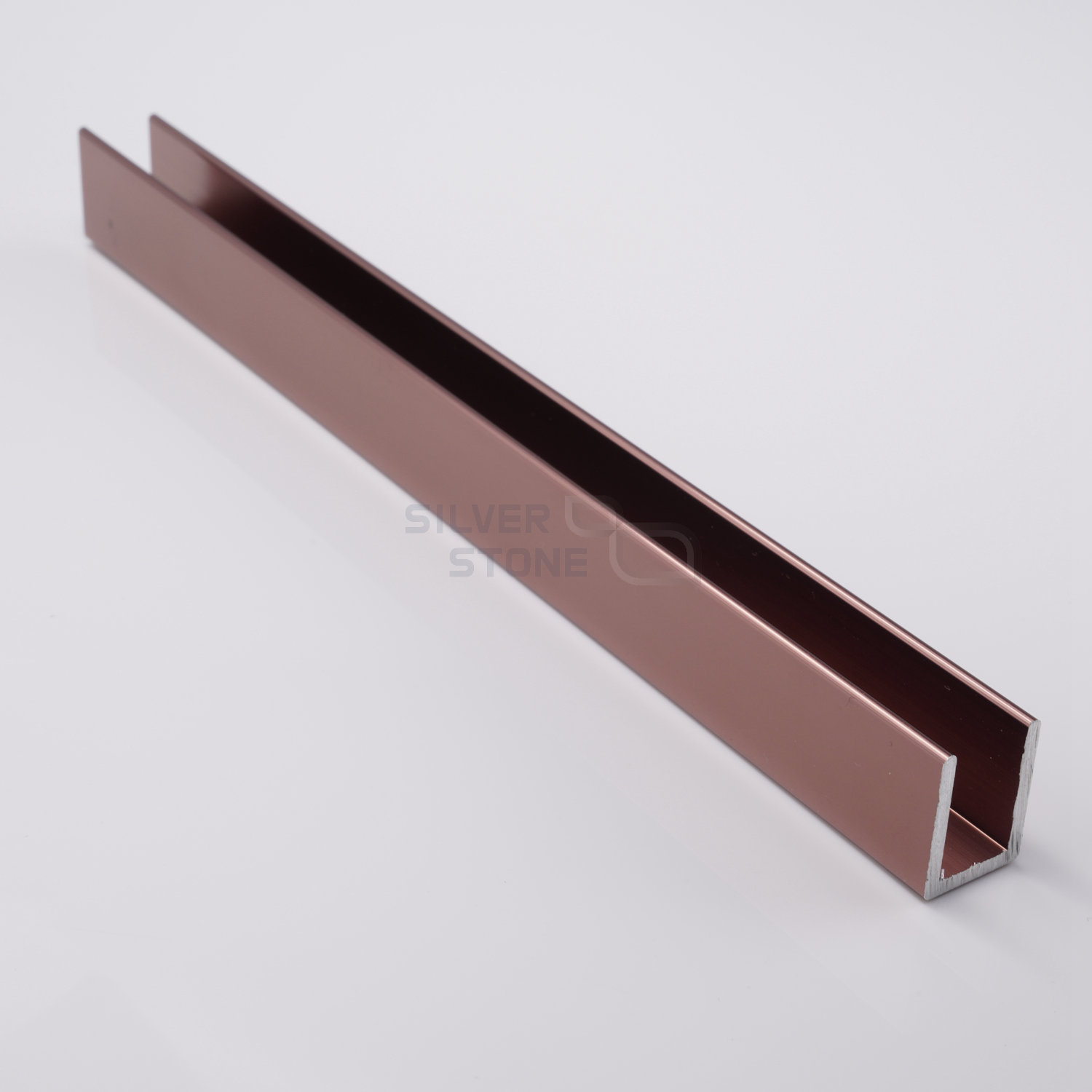

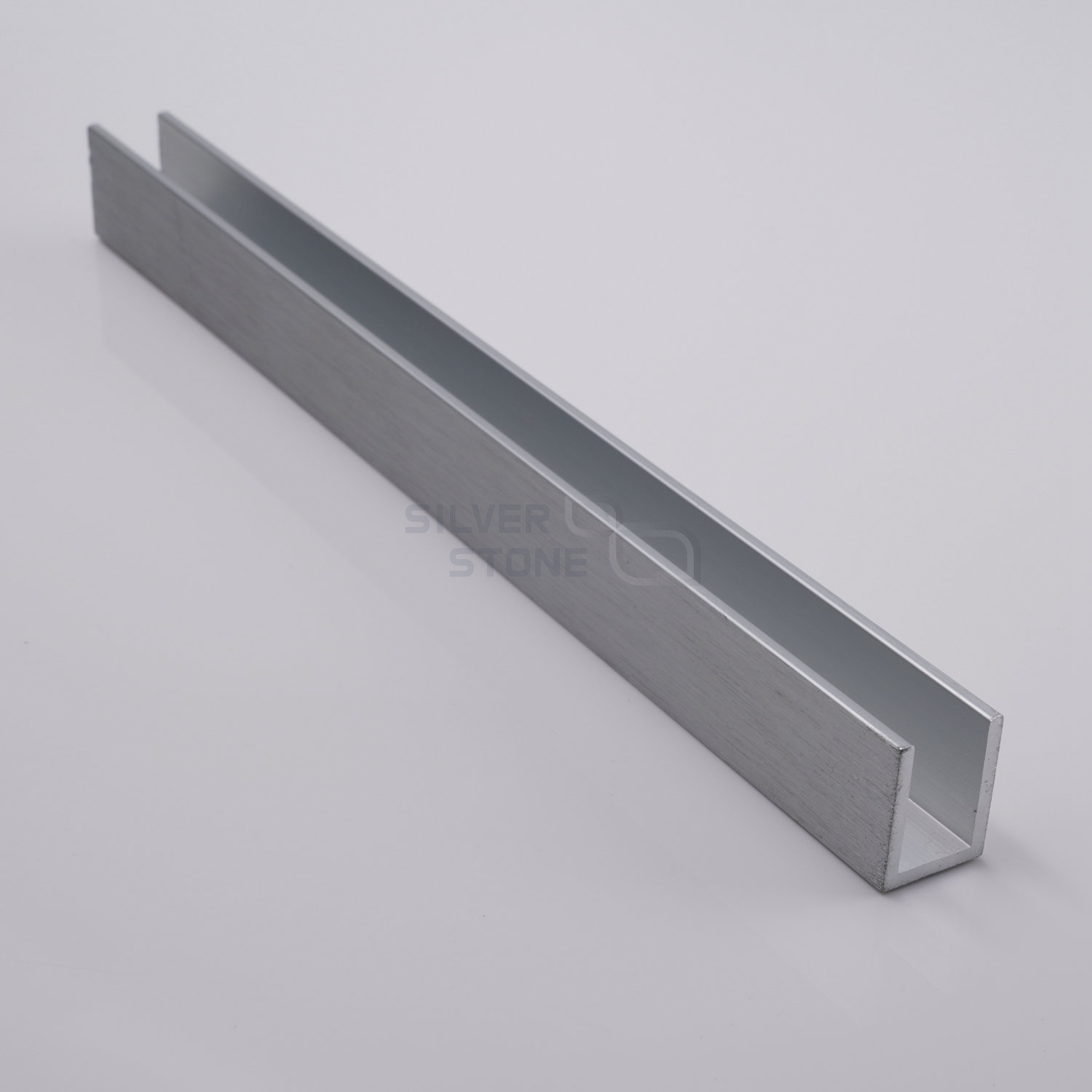

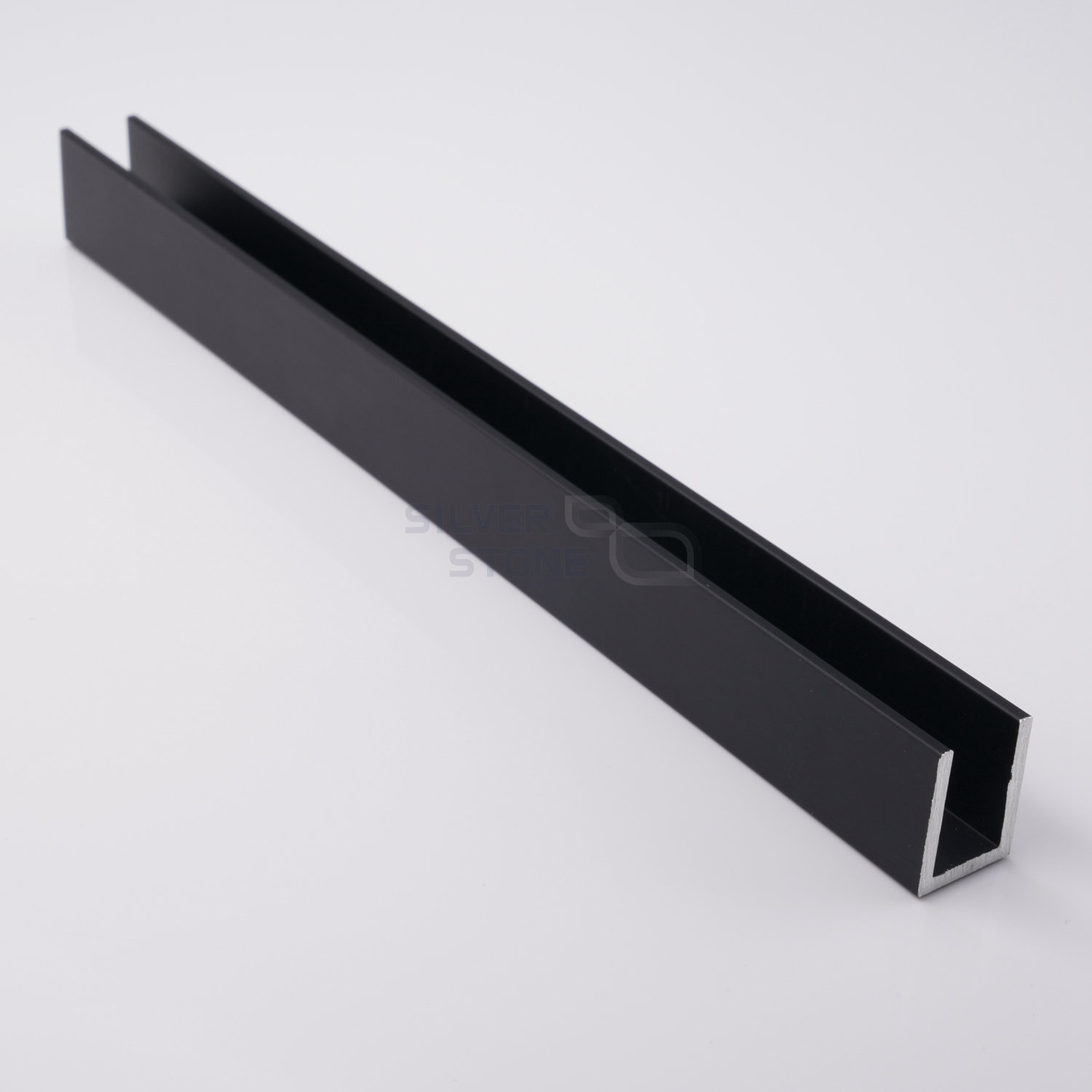

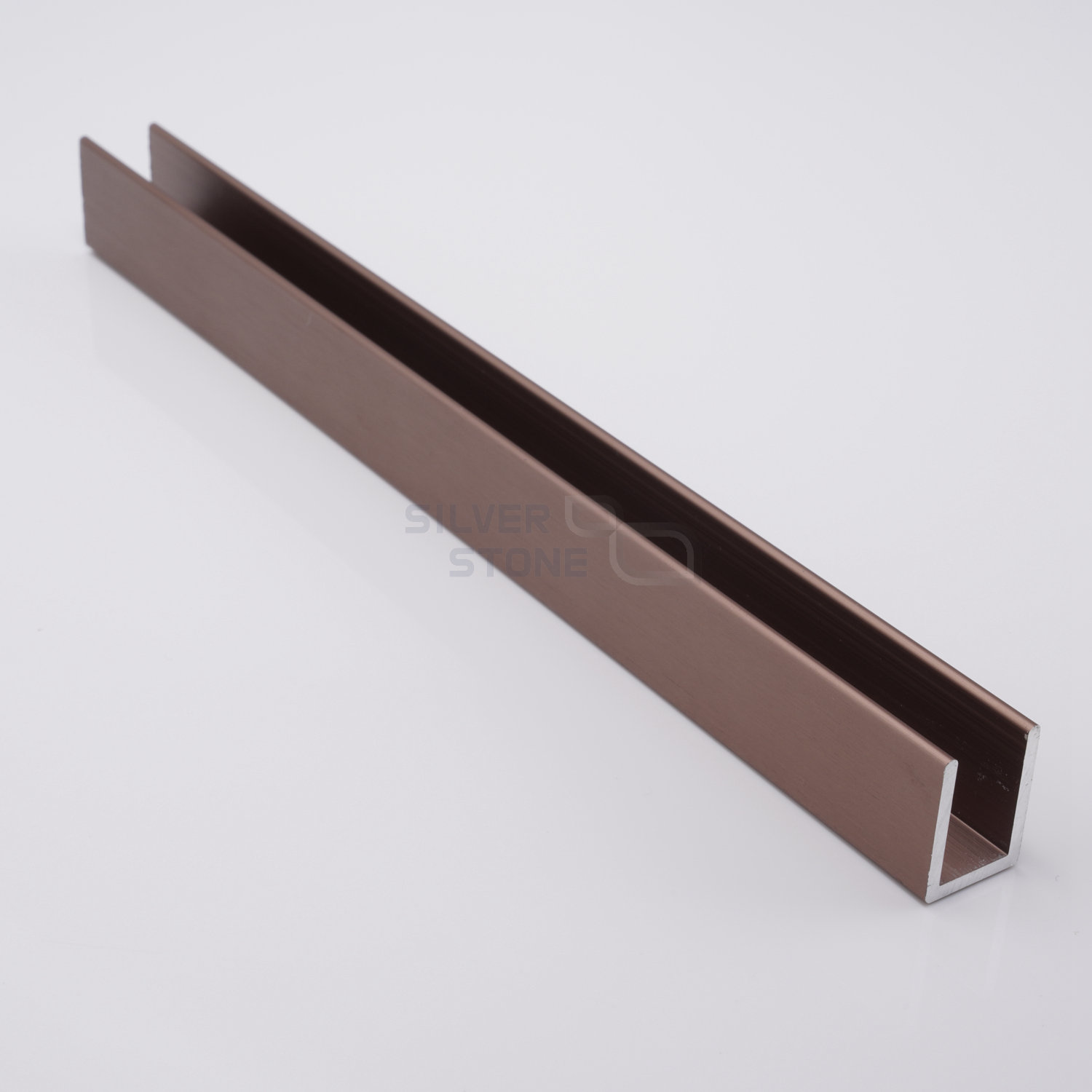

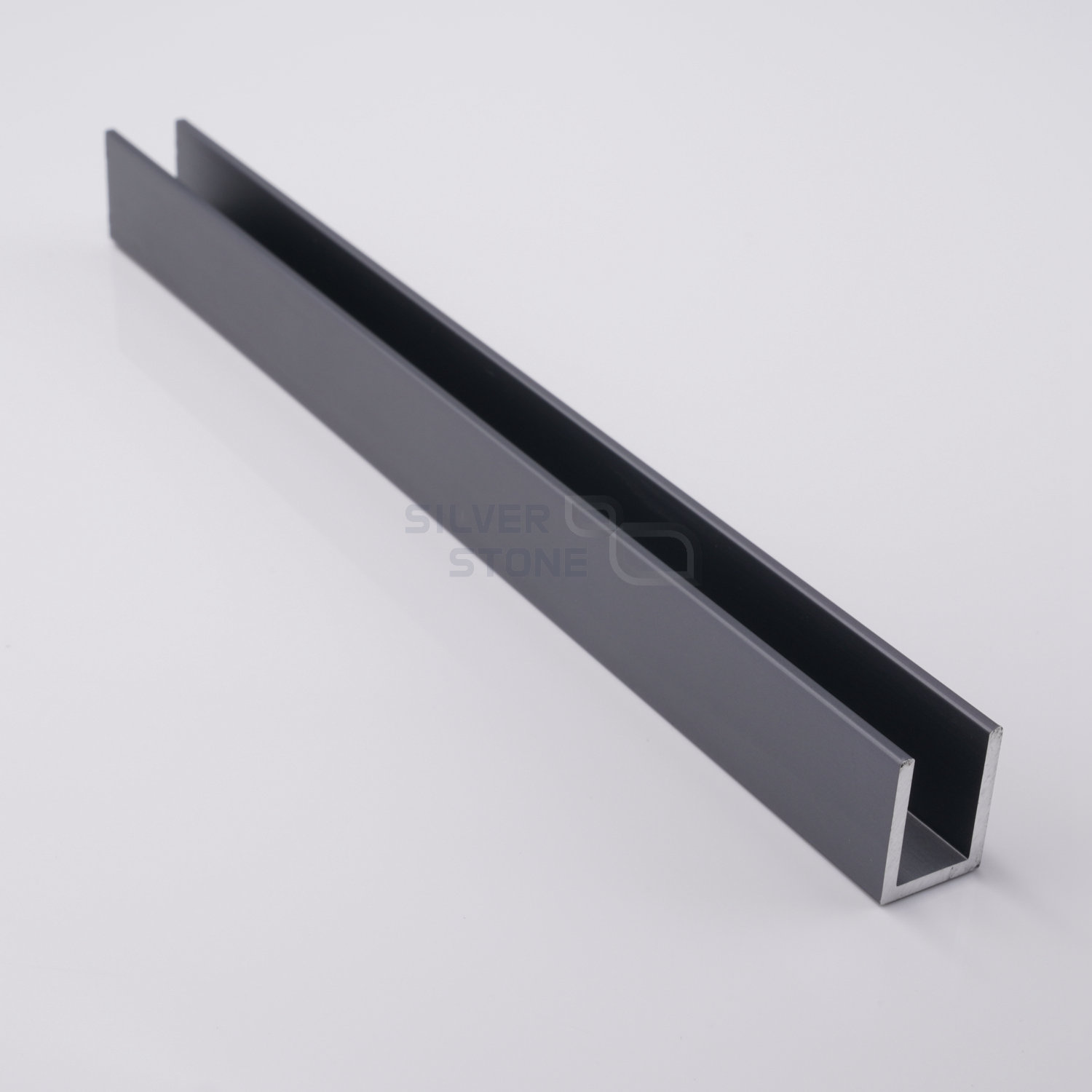

Polish Anodised / Polish Gold / Matte Black / Matte White / Brush Nickel / Brush Brass / Rose Gold / Brush Rose Gold / Gun Metal / Brush Gun Metal / Antique Brass
